I tried connecting the world tour drums to the pc, it worked, but the bass wasn't, so here's a little guide to make the bass work (i don't know how many people have that problem)
also, i suppose you know what glovepie and bluetooth is, if not, PM me.
1. Connect your drums to pc with BlueSoleil
2. Load the following script into Glovepie, but don't run it yet(thanks to Death_au, you rock man!!)
Spoiler:
Code: Select all
/*
// FoFiX World Tour multplayer multi-instrument script
// Version 0.81 by Death_au
// (bug fix by kirezar, Maurice10)
//
// Play as player 1 or two on any instrument (GH3/WT)
// Press the minus (-) button on the Wiimote (not the instrument)
// to change player. Check leds to see which wiimote and player
// your instrument is bound to:
// [] [] [] []
// 1 2 1 2
// Wiimote# Player#
//
// Change script settings and key bindings just below as you wish.
*/
//do not delete this line:
if(!var.OptionsInit)
/*////////////////////////////////////////////////////////////////
//////////////////////////////////////////////////////////////////
/ Script Settings: /
//////////////////////////////////////////////////////////////////
////////////////////////////////////////////////////////////////*/
//Enable Analog whammy?
//(at least one PPJoy virtual joystick must be installed, with at least 2 axis)
var.Guitar1.AnalogWhammy = false
var.Guitar2.AnalogWhammy = false
//Enable Analog slider bar?
//(at least one PPJoy virtual joystick must be installed, with at least 2 axis)
var.Guitar1.AnalogSlider = false
var.Guitar2.AnalogSlider = false
//Tilt required for star power to activate (set to >100 to disable)
var.Guitar1.MinTilt = 18
var.Guitar2.MinTilt = 18
//Rumble the Wiimote if guitar is tilted for star power
var.Guitar1.StarPowerRumble = true
var.Guitar2.StarPowerRumble = true
//World Tour style drum star power activation
//(hit yellow + orange to activate)
var.Drum1.WTStarpower = false
var.Drum2.WTStarpower = false
//if you hit yellow+orange to activate starpower, they don't register in-game
var.Drum1.WTStarpowerDisableHit = true
var.Drum2.WTStarpowerDisableHit = true
//What pad to map the orange pad to (since it's not used in FoFiX)
//(valid options: "BLUE", "GREEN", "YELLOW", "RED", "BASS", "NONE")
var.Drum1.OrangeMap = "BLUE"
var.Drum2.OrangeMap = "BLUE"
//use the pad information in Exp2 instead of Exp 5
//(the pads will register quicker, reccomended)
var.Drum1.UseVelocityPads = true
var.Drum2.UseVelocityPads = true
//do not edit this line
var.OptionsInit = true
endif
/*////////////////////////////////////////////////////////////////
//////////////////////////////////////////////////////////////////
/ Control Mapping /
//////////////////////////////////////////////////////////////////
////////////////////////////////////////////////////////////////*/
//P1 Guitar
Key.O = var.Guitar1.StrumUp
Key.P = var.Guitar1.StrumDown
Key.F1 = var.Guitar1.Green
Key.F2 = var.Guitar1.Red
Key.F3 = var.Guitar1.Yellow
Key.F4 = var.Guitar1.Blue
Key.F5 = var.Guitar1.Orange
Key.Left = var.Guitar1.Left
Key.Right = var.Guitar1.Right
Key.Up = var.Guitar1.Up
Key.Down = var.Guitar1.Down
Key.Escape = var.Guitar1.Plus //defined as "start" button in FoFiX
Key.PageDown = var.Guitar1.StarPower
if(var.Guitar1.AnalogWhammy)
ppjoy.Analog0 = var.Guitar1.Whammy
else //Digital Killswitch button:
Key.N = var.Guitar1.Whammy
endif
if(var.Guitar1.AnalogSlider)
ppjoy.Analog1 = var.Guitar1.SliderA
else //map to solo fret buttons (new in FoFiX)
Key.F6 = var.Guitar1.Slider.Green
Key.F7 = var.Guitar1.Slider.Red
Key.F8 = var.Guitar1.Slider.Yellow
Key.F9 = var.Guitar1.Slider.Blue
Key.F10 = var.Guitar1.Slider.Orange
endif
//P2 Guitar
Key.Delete = var.Guitar2.StrumUp
Key.Insert = var.Guitar2.StrumDown
Key.One = var.Guitar2.Green
Key.Two = var.Guitar2.Red
Key.Three = var.Guitar2.Yellow
Key.Four = var.Guitar2.Blue
Key.Five = var.Guitar2.Orange
Key.Left = var.Guitar2.Left
Key.Right = var.Guitar2.Right
Key.Up = var.Guitar2.Up
Key.Down = var.Guitar2.Down
Key.Console = var.Guitar2.Plus
Key.Home = var.Guitar2.StarPower //Minus button
if(var.Guitar2.AnalogWhammy)
ppjoy.Analog2 = var.Guitar2.Whammy
else //Digital Killswitch button:
Key.End = var.Guitar2.Whammy
endif
if(var.Guitar2.AnalogSlider)
ppjoy.Analog3 = var.Guitar2.SliderA
else //map to solo fret buttons (new in FoFiX)
Key.F6 = var.Guitar2.Slider.Green
Key.F7 = var.Guitar2.Slider.Red
Key.F8 = var.Guitar2.Slider.Yellow
Key.F9 = var.Guitar2.Slider.Blue
Key.F10 = var.Guitar2.Slider.Orange
endif
//P1 Drum
Key.Space = var.Drum1.Bass
Key.A = var.Drum1.Red
Key.E = var.Drum1.Yellow
Key.T = var.Drum1.Blue
Key.Y = var.Drum1.Orange //uncomment to change key binding for orange pad
Key.U = var.Drum1.Green
Key.Up = var.Drum1.Up
Key.Down = var.Drum1.Down
Key.Left = var.Drum1.Left
Key.Right = var.Drum1.Right
Key.Escape = var.Drum1.Plus
Key.PageDown = var.Drum1.StarPower //minus button
//P2 Drum
Key.L = var.Drum2.Bass
Key.Z = var.Drum2.Red
Key.D = var.Drum2.Yellow
Key.G = var.Drum2.Blue
//Key.H = var.Drum2.Orange //uncomment to change key binding for orange pad
Key.J = var.Drum2.Green
Key.Up = var.Drum2.Up
Key.Down = var.Drum2.Down
Key.Left = var.Drum2.Left
Key.Right = var.Drum2.Right
Key.Console = var.Drum2.Plus
Key.End = var.Drum2.StarPower //Minus button
/*////////////////////////////////////////////////////////////////
//////////////////////////////////////////////////////////////////
/ DO NOT EDIT THIS SECTION UNLESS YOU KNOW WHAT YOU'RE DOING!!!! /
//////////////////////////////////////////////////////////////////
////////////////////////////////////////////////////////////////*/
//Get the number of wiimotes
var.count = Wiimote.Count
if(!var.init)
//initialization code:
//Set initial "player"
var.Wiimote1Player = 1
var.Wiimote2Player = 2
//set the glove pie refresh rate:
PIE.FrameRate = 300Hz
//Detection for expansion controllers
var.Wiimote1Instrument = "NOT RECOGNISED"
var.Wiimote2Instrument = "NOT RECOGNISED"
//end init
var.init = true
endif
//detect if controllers were unplugged
if(!Wiimote1.Expansion)
var.Wiimote1Instrument = "NO EXPANSION"
endif
if(!Wiimote2.Expansion)
var.Wiimote2Instrument = "NO EXPANSION"
endif
if(Wiimote1.Expansion && var.Wiimote1Instrument == "NO EXPANSION") //Something just got plugged in
wait 100ms
if(Wiimote1.HasGuitar) //A GH3 Guitar
var.Wiimote1Instrument = "GH3"
else //Not a GH3 Guitar, try the wakeup code:
WiimotePoke(1, 0x4A400F0, 0x55) // Decrypt
wait 100ms
WiimotePoke(1, 0x4A400FB, 0) // Unknown
wait 100ms
WiimotePoke(1, 0x4A40040, 0)
wait 100ms
WiimoteSend(1, 0x17, 0x04, 0xA4, 0x00, 0xF0, 0, 16) // get type
wait 100ms
//check for the instrument again
if(Wiimote1.HasGuitar) //GH4 Instrument found, check for drum/guitar
if(|(1-((wiimote1.Exp2 & 128) >> 7))| == 1) // Guitar
var.Wiimote1Instrument = "GH4"
else //Must be drum
var.Wiimote1Instrument = "DRUM"
endif
else //no gh4 instrument either
var.Wiimote1Instrument = "NOT RECOGNISED"
endif
endif
endif
if(var.Count > 1) //2 (or more) wiimotes
//Check Expansion Type
if(Wiimote2.Expansion && var.Wiimote1Instrument == "NO EXPANSION") //Something just got plugged in
wait 100ms
if(Wiimote2.HasGuitar) //A GH3 Guitar
var.Wiimote2Instrument = "GH3"
else //Not a GH3 Guitar, try the wakeup code:
WiimotePoke(1, 0x4A400F0, 0x55) // Decrypt
wait 100ms
WiimotePoke(1, 0x4A400FB, 0) // Unknown
wait 100ms
WiimotePoke(1, 0x4A40040, 0)
wait 100ms
WiimoteSend(1, 0x17, 0x04, 0xA4, 0x00, 0xF0, 0, 16) // get type
wait 100ms
//check for the instrument again
if(Wiimote2.HasGuitar) //GH4 Instrument found, check for drum/guitar
if(|(1-((Wiimote2.Exp2 & 128) >> 7))| == 1) // Guitar
var.Wiimote2Instrument = "GH4"
else //Must be drum
var.Wiimote2Instrument = "DRUM"
endif
else //no gh4 instrument either
var.Wiimote2Instrument = "NOT RECOGNISED"
endif
endif
endif
endif //2 (or more) wiimotes
debug = "Wiimote1: " + var.Wiimote1Player + "; " + var.Wiimote1Instrument
debug += "; Wiimote2: " + var.Wiimote2Player + "; " + var.Wiimote2Instrument
//Player switching / display code
//swap Wimmote 1/2 players
if(pressed(Wiimote1.Minus) OR pressed(Wiimote1.Plus) OR pressed(Wiimote2.Minus) OR pressed(Wiimote2.Plus))
if(var.Wiimote1Player == 1)
var.Wiimote1Player = 2
var.Wiimote2Player = 1
else
var.Wiimote1Player = 1
var.Wiimote2Player = 2
endif
endif
//display wiimote1 info
Wiimote1.Led1 = true
Wiimote1.Led2 = false
if(var.Wiimote1Player == 1)
Wiimote1.Led3 = true
Wiimote1.Led4 = false
else if(var.Wiimote1Player == 2)
Wiimote1.Led3 = false
Wiimote1.Led4 = true
else
Wiimote1.Led3 = false
Wiimote1.Led4 = false
endif
//////////////////////////////////////////////////////////////
// Controller mappings:
//////////////////////////////////////////////////////////////
// GH3 Guitar
//////////////////////////////////////////////////////////////
if(var.Wiimote1Instrument == "GH3")
// Player 1
if(var.Wiimote1Player == 1)
// Joystick
var.Guitar1.Left = (-1.2 < Wiimote1.Guitar.JoyX < -0.5)
var.Guitar1.Right = ( 0.5 < Wiimote1.Guitar.JoyX < 1.2)
var.Guitar1.Up = (-1.2 < Wiimote1.Guitar.JoyY < -0.5)
var.Guitar1.Down = ( 0.5 < Wiimote1.Guitar.JoyY < 1.2)
// Fret Buttons
var.Guitar1.Green = Wiimote1.Guitar.Fret1
var.Guitar1.Red = Wiimote1.Guitar.Fret2
var.Guitar1.Yellow = Wiimote1.Guitar.Fret3
var.Guitar1.Blue = Wiimote1.Guitar.Fret4
var.Guitar1.Orange = Wiimote1.Guitar.Fret5
//Strumming
var.Guitar1.StrumUp = Wiimote1.Guitar.StrumUp
var.Guitar1.StrumDown = Wiimote1.Guitar.StrumDown
//Star Power
var.Guitar1.StarPower = Wiimote1.Guitar.Minus OR (var.Guitar1.MinTilt < Wiimote1.RawForceZ < 100)
wiimote1.Rumble = (var.Guitar1.StarPowerRumble AND var.Guitar1.StarPower)
//Pause/Back
var.Guitar1.Plus = Wiimote1.Guitar.Plus
//Whammy/Killswitch
if(var.Guitar1.AnalogWhammy)
var.Guitar1.Whammy = Wiimote1.Guitar.WhammyBar
else
var.Guitar1.Whammy = (0.7 < Wiimote1.Guitar.WhammyBar <= 1.0)
endif
//Player 2
else if(var.Wiimote1Player == 2)
// Joystick
var.Guitar2.Left = (-1.2 < Wiimote1.Guitar.JoyX < -0.5)
var.Guitar2.Right = ( 0.5 < Wiimote1.Guitar.JoyX < 1.2)
var.Guitar2.Up = (-1.2 < Wiimote1.Guitar.JoyY < -0.5)
var.Guitar2.Down = ( 0.5 < Wiimote1.Guitar.JoyY < 1.2)
// Fret Buttons
var.Guitar2.Green = Wiimote1.Guitar.Fret1
var.Guitar2.Red = Wiimote1.Guitar.Fret2
var.Guitar2.Yellow = Wiimote1.Guitar.Fret3
var.Guitar2.Blue = Wiimote1.Guitar.Fret4
var.Guitar2.Orange = Wiimote1.Guitar.Fret5
//Strumming
var.Guitar2.StrumUp = Wiimote1.Guitar.StrumUp
var.Guitar2.StrumDown = Wiimote1.Guitar.StrumDown
//Star Power
var.Guitar2.StarPower = Wiimote1.Guitar.Minus OR (var.Guitar2.MinTilt < Wiimote1.RawForceZ < 100)
wiimote1.Rumble = (var.Guitar2.StarPowerRumble AND var.Guitar2.StarPower)
//Pause/Back
var.Guitar2.Plus = Wiimote1.Guitar.Plus
//Whammy/Killswitch
if(var.Guitar2.AnalogWhammy)
var.Guitar2.Whammy = Wiimote1.Guitar.WhammyBar
else
var.Guitar2.Whammy = (0.7 < Wiimote1.Guitar.WhammyBar <= 1.0)
endif
endif
//////////////////////////////////////////////////////////////
// GH4 (WT) Guitar
//////////////////////////////////////////////////////////////
elseif(var.Wiimote1Instrument == "GH4")
//Player 1
if(var.Wiimote1Player == 1)
// Joystick
var.Guitar1.Left = (Wiimote1.Exp0 < 25)
var.Guitar1.Right = (Wiimote1.Exp0 > 40)
var.Guitar1.Down = (Wiimote1.Exp1 > 40)
var.Guitar1.Up = (Wiimote1.Exp1 < 25)
// Fret Buttons
var.Guitar1.Green = Wiimote1.Guitar.Fret1
var.Guitar1.Red = Wiimote1.Guitar.Fret2
var.Guitar1.Yellow = Wiimote1.Guitar.Fret3
var.Guitar1.Blue = Wiimote1.Guitar.Fret4
var.Guitar1.Orange = Wiimote1.Guitar.Fret5
//Strumming
var.Guitar1.StrumUp = Wiimote1.Guitar.StrumUp
var.Guitar1.StrumDown = Wiimote1.Guitar.StrumDown
//Star Power
var.Guitar1.StarPower = Wiimote1.Guitar.Minus OR (var.Guitar1.MinTilt < Wiimote1.RawForceZ < 100)
wiimote1.Rumble = (var.Guitar1.StarPowerRumble AND var.Guitar1.StarPower)
//Pause/Back
var.Guitar1.Plus = Wiimote1.Guitar.Plus
//Whammy/Killswitch
if(var.Guitar1.AnalogWhammy)
var.Guitar1.Whammy = Wiimote1.Guitar.WhammyBar
else
var.Guitar1.Whammy = (0.7 < Wiimote1.Guitar.WhammyBar <= 1.0)
endif
//Slider bar
if(var.Guitar1.AnalogSlider)
var.Guitar1.SliderA = (Wiimote1.Exp2 / 15.8) - 1.12
else
var.Guitar1.Slider.Green = ( Wiimote1.Exp2 < 9 )
var.Guitar1.Slider.Red = (6 <= Wiimote1.Exp2 < 14)
var.Guitar1.Slider.Yellow = (11 <= Wiimote1.Exp2 < 14) or (17 <= Wiimote1.Exp2 < 22)
var.Guitar1.Slider.Blue = (20 <= Wiimote1.Exp2 < 28)
var.Guitar1.Slider.Orange = (25 <= Wiimote1.Exp2 <=32)
endif
/*
G - 04 - < 6
GR - 07 - 6 <= < 9
R - 10 - 9 <= < 11 g - ( < 9 )
RY - 12/13 - 11 <= < 14 r - (6 <= < 14)
NONE - 15 - 14 <= < 17 y - (11 <= < 14) && (17 <= < 22)
Y - 18/19 - 17 <= < 20 b - (20 <= < 28)
YB - 20/21 - 20 <= < 22 o - ( >=25)
B - 23/24 - 22 <= < 25
BO - 26 - 25 <= < 28
O - 31 - >=28
*/
//Player 2
else if(var.Wiimote1Player == 2)
// Joystick
var.Guitar2.Left = (Wiimote1.Exp0 < 25)
var.Guitar2.Right = (Wiimote1.Exp0 > 40)
var.Guitar2.Down = (Wiimote1.Exp1 > 40)
var.Guitar2.Up = (Wiimote1.Exp1 < 25)
// Fret Buttons
var.Guitar2.Green = Wiimote1.Guitar.Fret1
var.Guitar2.Red = Wiimote1.Guitar.Fret2
var.Guitar2.Yellow = Wiimote1.Guitar.Fret3
var.Guitar2.Blue = Wiimote1.Guitar.Fret4
var.Guitar2.Orange = Wiimote1.Guitar.Fret5
//Strumming
var.Guitar2.StrumUp = Wiimote1.Guitar.StrumUp
var.Guitar2.StrumDown = Wiimote1.Guitar.StrumDown
//Star Power
var.Guitar2.StarPower = Wiimote1.Guitar.Minus OR (var.Guitar2.MinTilt < Wiimote1.RawForceZ < 100)
wiimote1.Rumble = (var.Guitar2.StarPowerRumble AND var.Guitar2.StarPower)
//Pause/Back
var.Guitar2.Plus = Wiimote1.Guitar.Plus
//Whammy/Killswitch
if(var.Guitar2.AnalogWhammy)
var.Guitar2.Whammy = Wiimote1.Guitar.WhammyBar
else
var.Guitar2.Whammy = (0.7 < Wiimote1.Guitar.WhammyBar <= 1.0)
endif
//Slider bar
if(var.Guitar2.AnalogSlider)
var.Guitar2.SliderA = (Wiimote1.Exp2 / 15.8) - 1.12
else
var.Guitar2.Slider.Green = ( Wiimote1.Exp2 < 9 )
var.Guitar2.Slider.Red = (6 <= Wiimote1.Exp2 < 14)
var.Guitar2.Slider.Yellow = (11 <= Wiimote1.Exp2 < 14) or (17 <= Wiimote1.Exp2 < 22)
var.Guitar2.Slider.Blue = (20 <= Wiimote1.Exp2 < 28)
var.Guitar2.Slider.Orange = (25 <= Wiimote1.Exp2 <=32)
endif
endif
//////////////////////////////////////////////////////////////
// GH4 (WT) Drums
//////////////////////////////////////////////////////////////
elseif(var.Wiimote1Instrument == "DRUM")
//Player 1
if(var.Wiimote1Player == 1)
// Joystick
var.Drum1.Left = (Wiimote1.Exp0 < 25)
var.Drum1.Right = (Wiimote1.Exp0 > 40)
var.Drum1.Down = (Wiimote1.Exp1 > 40)
var.Drum1.Up = (Wiimote1.Exp1 < 25)
// Drum pads
if(var.Drum1.UseVelocityPads)
var.Drum1.Bass = (Wiimote1.Exp2=182 or Wiimote1.Exp2=183)
var.Drum1.Red = (Wiimote1.Exp2=178 or Wiimote1.Exp2=179)
var.Drum1.Yellow = (Wiimote1.Exp2=162 or Wiimote1.Exp2=163)
var.Drum1.Blue = (Wiimote1.Exp2=158 or Wiimote1.Exp2=159)
var.Drum1.Green = (Wiimote1.Exp2=164 or Wiimote1.Exp2=165)
var.Drum1.Orange = (Wiimote1.Exp2=156 or Wiimote1.Exp2=157)
else
var.Drum1.Bass = |(1-((wiimote1.Exp5 & 4) >> 2))|
var.Drum1.Red = |(1-((wiimote1.Exp5 & 64) >> 6))|
var.Drum1.Yellow = |(1-((wiimote1.Exp5 & 32) >> 5))|
var.Drum1.Blue = |(1-((wiimote1.Exp5 & 8) >> 3))|
var.Drum1.Green = |(1-((wiimote1.Exp5 & 16) >> 4))|
var.Drum1.Orange = |(1-((wiimote1.Exp5 & 128) >> 7))|
endif
//WT Starpower activation
if(var.Drum1.WTStarpower AND var.Drum1.Yellow AND var.Drum1.Orange)
var.Drum1.StarPower = true
if(var.Drum1.WTStarpowerDisableHit)
var.Drum1.Yellow = false
var.Drum1.Orange = false
endif
endif
//Star power by minus button
var.Drum1.StarPower = var.Drum1.StarPower OR Wiimote1.Guitar.Minus
//Pause/Back (plus)
var.Drum1.Plus = Wiimote1.Guitar.Plus
// Remap the orange pad:
if(var.Drum1.OrangeMap == "GREEN")
var.Drum1.Green = var.Drum1.Green OR var.Drum1.Orange
elseif(var.Drum1.OrangeMap == "YELLOW")
var.Drum1.Yellow = var.Drum1.Yellow OR var.Drum1.Orange
elseif(var.Drum1.OrangeMap == "RED")
var.Drum1.Red = var.Drum1.Red OR var.Drum1.Orange
elseif(var.Drum1.OrangeMap == "BLUE")
var.Drum1.Blue = var.Drum1.Blue OR var.Drum1.Orange
elseif(var.Drum1.OrangeMap == "BASS")
var.Drum1.Bass = var.Drum1.Bass OR var.Drum1.Orange
endif
//Player 2
else if(var.Wiimote1Player == 2)
// Joystick
var.Drum2.Left = (Wiimote1.Exp0 < 25)
var.Drum2.Right = (Wiimote1.Exp0 > 40)
var.Drum2.Down = (Wiimote1.Exp1 > 40)
var.Drum2.Up = (Wiimote1.Exp1 < 25)
// Drum pads
if(var.Drum2.UseVelocityPads)
var.Drum2.Bass = (Wiimote1.Exp2=182 or Wiimote1.Exp2=183)
var.Drum2.Red = (Wiimote1.Exp2=178 or Wiimote1.Exp2=179)
var.Drum2.Yellow = (Wiimote1.Exp2=162 or Wiimote1.Exp2=163)
var.Drum2.Blue = (Wiimote1.Exp2=158 or Wiimote1.Exp2=159)
var.Drum2.Green = (Wiimote1.Exp2=164 or Wiimote1.Exp2=165)
var.Drum2.Orange = (Wiimote1.Exp2=156 or Wiimote1.Exp2=157)
else
var.Drum2.Bass = |(1-((wiimote1.Exp5 & 4) >> 2))|
var.Drum2.Red = |(1-((wiimote1.Exp5 & 64) >> 6))|
var.Drum2.Yellow = |(1-((wiimote1.Exp5 & 32) >> 5))|
var.Drum2.Blue = |(1-((wiimote1.Exp5 & 8) >> 3))|
var.Drum2.Green = |(1-((wiimote1.Exp5 & 16) >> 4))|
var.Drum2.Orange = |(1-((wiimote1.Exp5 & 128) >> 7))|
endif
//WT Starpower activation
if(var.Drum2.WTStarpower AND var.Drum2.Yellow AND var.Drum2.Orange)
var.Drum2.StarPower = true
if(var.Drum2.WTStarpowerDisableHit)
var.Drum2.Yellow = false
var.Drum2.Orange = false
endif
endif
//Star power by minus button
var.Drum2.StarPower = var.Drum2.StarPower OR Wiimote1.Guitar.Minus
//Pause/Back (plus)
var.Drum2.Plus = Wiimote1.Guitar.Plus
// Remap the orange pad:
if(var.Drum2.OrangeMap == "GREEN")
var.Drum2.Green = var.Drum2.Green OR var.Drum2.Orange
elseif(var.Drum2.OrangeMap == "YELLOW")
var.Drum2.Yellow = var.Drum2.Yellow OR var.Drum2.Orange
elseif(var.Drum2.OrangeMap == "RED")
var.Drum2.Red = var.Drum2.Red OR var.Drum2.Orange
elseif(var.Drum2.OrangeMap == "BLUE")
var.Drum2.Blue = var.Drum2.Blue OR var.Drum2.Orange
elseif(var.Drum2.OrangeMap == "BASS")
var.Drum2.Bass = var.Drum2.Bass OR var.Drum2.Orange
endif
endif
//No instrument connected
else
Wiimote1.Led3 = false
Wiimote1.Led4 = false
wait 1000ms
endif
///////////////////////////////////////////////////////////////
if(var.count > 1) // Wiimote 2
///////////////////////////////////////////////////////////////
//display wiimote2 info
Wiimote2.Led1 = true
Wiimote2.Led2 = false
if(var.Wiimote2Player == 1)
Wiimote2.Led3 = true
Wiimote2.Led4 = false
else if(var.Wiimote2Player == 2)
Wiimote2.Led3 = false
Wiimote2.Led4 = true
else
Wiimote2.Led3 = false
Wiimote2.Led4 = false
endif
//////////////////////////////////////////////////////////////
// GH3 Guitar
//////////////////////////////////////////////////////////////
if(var.Wiimote2Instrument == "GH3")
// Player 1
if(var.Wiimote2Player == 1)
// Joystick
var.Guitar1.Left = (-1.2 < Wiimote2.Guitar.JoyX < -0.5)
var.Guitar1.Right = ( 0.5 < Wiimote2.Guitar.JoyX < 1.2)
var.Guitar1.Up = (-1.2 < Wiimote2.Guitar.JoyY < -0.5)
var.Guitar1.Down = ( 0.5 < Wiimote2.Guitar.JoyY < 1.2)
// Fret Buttons
var.Guitar1.Green = Wiimote2.Guitar.Fret1
var.Guitar1.Red = Wiimote2.Guitar.Fret2
var.Guitar1.Yellow = Wiimote2.Guitar.Fret3
var.Guitar1.Blue = Wiimote2.Guitar.Fret4
var.Guitar1.Orange = Wiimote2.Guitar.Fret5
//Strumming
var.Guitar1.StrumUp = Wiimote2.Guitar.StrumUp
var.Guitar1.StrumDown = Wiimote2.Guitar.StrumDown
//Star Power
var.Guitar1.StarPower = Wiimote2.Guitar.Minus OR (var.Guitar1.MinTilt < Wiimote2.RawForceZ < 100)
wiimote2.Rumble = (var.Guitar1.StarPowerRumble AND var.Guitar1.StarPower)
//Pause/Back
var.Guitar1.Plus = Wiimote2.Guitar.Plus
//Whammy/Killswitch
if(var.Guitar1.AnalogWhammy)
var.Guitar1.Whammy = Wiimote2.Guitar.WhammyBar
else
var.Guitar1.Whammy = (0.7 < Wiimote2.Guitar.WhammyBar <= 1.0)
endif
//Player 2
else if(var.Wiimote2Player == 2)
// Joystick
var.Guitar2.Left = (-1.2 < Wiimote2.Guitar.JoyX < -0.5)
var.Guitar2.Right = ( 0.5 < Wiimote2.Guitar.JoyX < 1.2)
var.Guitar2.Up = (-1.2 < Wiimote2.Guitar.JoyY < -0.5)
var.Guitar2.Down = ( 0.5 < Wiimote2.Guitar.JoyY < 1.2)
// Fret Buttons
var.Guitar2.Green = Wiimote2.Guitar.Fret1
var.Guitar2.Red = Wiimote2.Guitar.Fret2
var.Guitar2.Yellow = Wiimote2.Guitar.Fret3
var.Guitar2.Blue = Wiimote2.Guitar.Fret4
var.Guitar2.Orange = Wiimote2.Guitar.Fret5
//Strumming
var.Guitar2.StrumUp = Wiimote2.Guitar.StrumUp
var.Guitar2.StrumDown = Wiimote2.Guitar.StrumDown
//Star Power
var.Guitar2.StarPower = Wiimote2.Guitar.Minus OR (var.Guitar2.MinTilt < Wiimote2.RawForceZ < 100)
wiimote2.Rumble = (var.Guitar2.StarPowerRumble AND var.Guitar2.StarPower)
//Pause/Back
var.Guitar2.Plus = Wiimote2.Guitar.Plus
//Whammy/Killswitch
if(var.Guitar2.AnalogWhammy)
var.Guitar2.Whammy = Wiimote2.Guitar.WhammyBar
else
var.Guitar2.Whammy = (0.7 < Wiimote2.Guitar.WhammyBar <= 1.0)
endif
endif
//////////////////////////////////////////////////////////////
// GH4 (WT) Guitar
//////////////////////////////////////////////////////////////
elseif(var.Wiimote2Instrument == "GH4")
//Player 1
if(var.Wiimote2Player == 1)
// Joystick
var.Guitar1.Left = (Wiimote2.Exp0 < 25)
var.Guitar1.Right = (Wiimote2.Exp0 > 40)
var.Guitar1.Down = (Wiimote2.Exp1 > 40)
var.Guitar1.Up = (Wiimote2.Exp1 < 25)
// Fret Buttons
var.Guitar1.Green = Wiimote2.Guitar.Fret1
var.Guitar1.Red = Wiimote2.Guitar.Fret2
var.Guitar1.Yellow = Wiimote2.Guitar.Fret3
var.Guitar1.Blue = Wiimote2.Guitar.Fret4
var.Guitar1.Orange = Wiimote2.Guitar.Fret5
//Strumming
var.Guitar1.StrumUp = Wiimote2.Guitar.StrumUp
var.Guitar1.StrumDown = Wiimote2.Guitar.StrumDown
//Star Power
var.Guitar1.StarPower = Wiimote2.Guitar.Minus OR (var.Guitar1.MinTilt < Wiimote2.RawForceZ < 100)
wiimote2.Rumble = (var.Guitar1.StarPowerRumble AND var.Guitar1.StarPower)
//Pause/Back
var.Guitar1.Plus = Wiimote2.Guitar.Plus
//Whammy/Killswitch
if(var.Guitar1.AnalogWhammy)
var.Guitar1.Whammy = Wiimote2.Guitar.WhammyBar
else
var.Guitar1.Whammy = (0.7 < Wiimote2.Guitar.WhammyBar <= 1.0)
endif
//Slider bar
if(var.Guitar1.AnalogSlider)
var.Guitar1.SliderA = (Wiimote2.Exp2 / 15.8) - 1.12
else
var.Guitar1.Slider.Green = ( Wiimote2.Exp2 < 9 )
var.Guitar1.Slider.Red = (6 <= Wiimote2.Exp2 < 14)
var.Guitar1.Slider.Yellow = (11 <= Wiimote2.Exp2 < 14) or (17 <= Wiimote2.Exp2 < 22)
var.Guitar1.Slider.Blue = (20 <= Wiimote2.Exp2 < 28)
var.Guitar1.Slider.Orange = (25 <= Wiimote2.Exp2 <=32)
endif
//Player 2
else if(var.Wiimote2Player == 2)
// Joystick
var.Guitar2.Left = (Wiimote2.Exp0 < 25)
var.Guitar2.Right = (Wiimote2.Exp0 > 40)
var.Guitar2.Down = (Wiimote2.Exp1 > 40)
var.Guitar2.Up = (Wiimote2.Exp1 < 25)
// Fret Buttons
var.Guitar2.Green = Wiimote2.Guitar.Fret1
var.Guitar2.Red = Wiimote2.Guitar.Fret2
var.Guitar2.Yellow = Wiimote2.Guitar.Fret3
var.Guitar2.Blue = Wiimote2.Guitar.Fret4
var.Guitar2.Orange = Wiimote2.Guitar.Fret5
//Strumming
var.Guitar2.StrumUp = Wiimote2.Guitar.StrumUp
var.Guitar2.StrumDown = Wiimote2.Guitar.StrumDown
//Star Power
var.Guitar2.StarPower = Wiimote2.Guitar.Minus OR (var.Guitar2.MinTilt < Wiimote2.RawForceZ < 100)
wiimote2.Rumble = (var.Guitar2.StarPowerRumble AND var.Guitar2.StarPower)
//Pause/Back
var.Guitar2.Plus = Wiimote2.Guitar.Plus
//Whammy/Killswitch
if(var.Guitar2.AnalogWhammy)
var.Guitar2.Whammy = Wiimote2.Guitar.WhammyBar
else
var.Guitar2.Whammy = (0.7 < Wiimote2.Guitar.WhammyBar <= 1.0)
endif
//Slider bar
if(var.Guitar2.AnalogSlider)
var.Guitar2.SliderA = (Wiimote2.Exp2 / 15.8) - 1.12
else
var.Guitar2.Slider.Green = ( Wiimote2.Exp2 < 9 )
var.Guitar2.Slider.Red = (6 <= Wiimote2.Exp2 < 14)
var.Guitar2.Slider.Yellow = (11 <= Wiimote2.Exp2 < 14) or (17 <= Wiimote2.Exp2 < 22)
var.Guitar2.Slider.Blue = (20 <= Wiimote2.Exp2 < 28)
var.Guitar2.Slider.Orange = (25 <= Wiimote2.Exp2 <=32)
endif
endif
//////////////////////////////////////////////////////////////
// GH4 (WT) Drums
//////////////////////////////////////////////////////////////
elseif(var.Wiimote2Instrument == "DRUMS")
//Player 1
if(var.Wiimote2Player == 1)
// Joystick
var.Drum1.Left = (Wiimote2.Exp0 < 25)
var.Drum1.Right = (Wiimote2.Exp0 > 40)
var.Drum1.Down = (Wiimote2.Exp1 > 40)
var.Drum1.Up = (Wiimote2.Exp1 < 25)
// Drum pads
if(var.Drum1.UseVelocityPads)
var.Drum1.Bass = (Wiimote2.Exp2=182 or Wiimote2.Exp2=183)
var.Drum1.Red = (Wiimote2.Exp2=178 or Wiimote2.Exp2=179)
var.Drum1.Yellow = (Wiimote2.Exp2=162 or Wiimote2.Exp2=163)
var.Drum1.Blue = (Wiimote2.Exp2=158 or Wiimote2.Exp2=159)
var.Drum1.Green = (Wiimote2.Exp2=164 or Wiimote2.Exp2=165)
var.Drum1.Orange = (Wiimote2.Exp2=156 or Wiimote2.Exp2=157)
else
var.Drum1.Bass = |(1-((Wiimote2.Exp5 & 4) >> 2))|
var.Drum1.Red = |(1-((Wiimote2.Exp5 & 64) >> 6))|
var.Drum1.Yellow = |(1-((Wiimote2.Exp5 & 32) >> 5))|
var.Drum1.Blue = |(1-((Wiimote2.Exp5 & 8) >> 3))|
var.Drum1.Green = |(1-((Wiimote2.Exp5 & 16) >> 4))|
var.Drum1.Orange = |(1-((Wiimote2.Exp5 & 128) >> 7))|
endif
//WT Starpower activation
if(var.Drum1.WTStarpower AND var.Drum1.Yellow AND var.Drum1.Orange)
var.Drum1.StarPower = true
if(var.Drum1.WTStarpowerDisableHit)
var.Drum1.Yellow = false
var.Drum1.Orange = false
endif
endif
//Star power by minus button
var.Drum1.StarPower = var.Drum1.StarPower OR Wiimote2.Guitar.Minus
//Pause/Back (plus)
var.Drum1.Plus = Wiimote2.Guitar.Plus
// Remap the orange pad:
if(var.Drum1.OrangeMap == "GREEN")
var.Drum1.Green = var.Drum1.Green OR var.Drum1.Orange
elseif(var.Drum1.OrangeMap == "YELLOW")
var.Drum1.Yellow = var.Drum1.Yellow OR var.Drum1.Orange
elseif(var.Drum1.OrangeMap == "RED")
var.Drum1.Red = var.Drum1.Red OR var.Drum1.Orange
elseif(var.Drum1.OrangeMap == "BLUE")
var.Drum1.Blue = var.Drum1.Blue OR var.Drum1.Orange
elseif(var.Drum1.OrangeMap == "BASS")
var.Drum1.Bass = var.Drum1.Bass OR var.Drum1.Orange
endif
//Player 2
else if(var.Wiimote2Player == 2)
// Joystick
var.Drum2.Left = (Wiimote2.Exp0 < 25)
var.Drum2.Right = (Wiimote2.Exp0 > 40)
var.Drum2.Down = (Wiimote2.Exp1 > 40)
var.Drum2.Up = (Wiimote2.Exp1 < 25)
// Drum pads
if(var.Drum2.UseVelocityPads)
var.Drum2.Bass = (Wiimote2.Exp2=182 or Wiimote2.Exp2=183)
var.Drum2.Red = (Wiimote2.Exp2=178 or Wiimote2.Exp2=179)
var.Drum2.Yellow = (Wiimote2.Exp2=162 or Wiimote2.Exp2=163)
var.Drum2.Blue = (Wiimote2.Exp2=158 or Wiimote2.Exp2=159)
var.Drum2.Green = (Wiimote2.Exp2=164 or Wiimote2.Exp2=165)
var.Drum2.Orange = (Wiimote2.Exp2=156 or Wiimote2.Exp2=157)
else
var.Drum2.Bass = |(1-((Wiimote2.Exp5 & 4) >> 2))|
var.Drum2.Red = |(1-((Wiimote2.Exp5 & 64) >> 6))|
var.Drum2.Yellow = |(1-((Wiimote2.Exp5 & 32) >> 5))|
var.Drum2.Blue = |(1-((Wiimote2.Exp5 & 8) >> 3))|
var.Drum2.Green = |(1-((Wiimote2.Exp5 & 16) >> 4))|
var.Drum2.Orange = |(1-((Wiimote2.Exp5 & 128) >> 7))|
endif
//WT Starpower activation
if(var.Drum2.WTStarpower AND var.Drum2.Yellow AND var.Drum2.Orange)
var.Drum2.StarPower = true
if(var.Drum2.WTStarpowerDisableHit)
var.Drum2.Yellow = false
var.Drum2.Orange = false
endif
endif
//Star power by minus button
var.Drum2.StarPower = var.Drum2.StarPower OR Wiimote2.Guitar.Minus
//Pause/Back (plus)
var.Drum2.Plus = Wiimote2.Guitar.Plus
// Remap the orange pad:
if(var.Drum2.OrangeMap == "GREEN")
var.Drum2.Green = var.Drum2.Green OR var.Drum2.Orange
elseif(var.Drum2.OrangeMap == "YELLOW")
var.Drum2.Yellow = var.Drum2.Yellow OR var.Drum2.Orange
elseif(var.Drum2.OrangeMap == "RED")
var.Drum2.Red = var.Drum2.Red OR var.Drum2.Orange
elseif(var.Drum2.OrangeMap == "BLUE")
var.Drum2.Blue = var.Drum2.Blue OR var.Drum2.Orange
elseif(var.Drum2.OrangeMap == "BASS")
var.Drum2.Bass = var.Drum2.Bass OR var.Drum2.Orange
endif
endif
//No instrument connected
else
Wiimote2.Led3 = false
Wiimote2.Led4 = false
wait 1000ms
endif
///////////////////////////////////////////////////////////////
endif // end Wiimote 2
///////////////////////////////////////////////////////////////
//END OF FILE
3. Here comes the solution to the bass problem, it's a harware solution.
- unplug your bass pedal and your orange hi-hit, also, it's handy if you completely remove your hi-hat (keep the yellow one though)

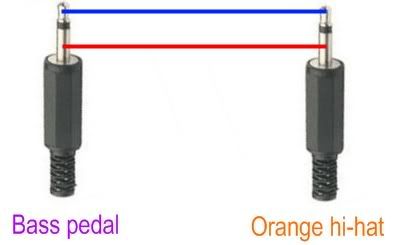

- connect then with like this, with electrical wire, two female jack-connectors, ...

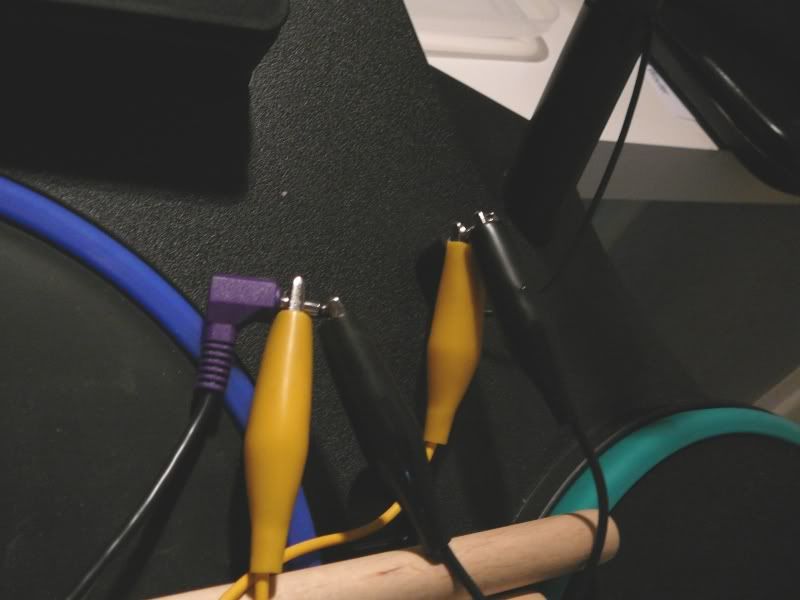

Normally it should something like this :
Spoiler:
4. Run the script in glovepie
5. Go into FoFix, controls and adjust them
6. Rock out
I hope this was helpfull, if there are any questions, i'll be happy to answer them :)
